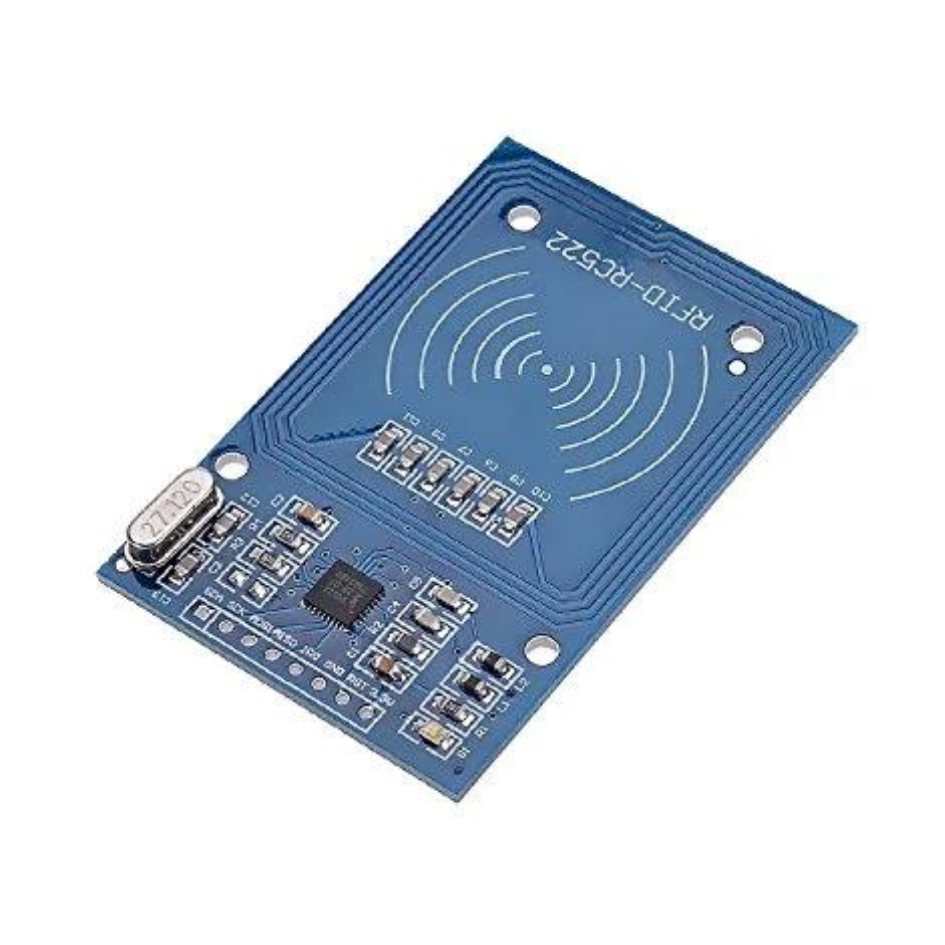

RFID Reader/Writer RC522 SPI S50 with RFID Card and Tag

Unlock the potential of RFID technology with the RC522 RFID Reader/Writer. This compact module is designed for quick integration into RFID-based security, personal identification, and access control systems. Ideal for hobbyists and developers alike, the RC522 operates on the 13.56 MHz frequency and supports both the ISO/IEC 14443 A and B standards used in most common RFID applications.

Features:

• High Frequency Operation: Works at 13.56 MHz, perfect for a wide range of near-field applications.
• Versatile Compatibility: Supports ISO/IEC 14443 A/MIFARE and B standards.
• Integrated Antenna: Comes with an onboard antenna capable of a communication range of up to 50 mm, depending on the environment.
• SPI Interface: Facilitates easy and quick connection to a wide range of microcontrollers and systems.
• Low Power Consumption: Operates efficiently with a typical current draw of only 13-26 mA during operation and 10 μA in standby mode.
• Comprehensive Kit: Includes an RFID card and key tag for immediate deployment in projects.
• User-Friendly SDK: Offers a user-friendly software development kit to simplify development and reduce time to market.
• Compact Design: Small form factor makes it easy to integrate into existing setups without cumbersome adjustments.

Specifications:

• Supply Voltage: 2.5V to 3.3V
• Operating Current: 13-26 mA
• Frequency: 13.56 MHz
• Supported Card Types: MIFARE Mini, MIFARE 1k, MIFARE 4k, MIFARE Ultralight, MIFARE DESFire, MIFARE Plus, T=CL Smart Cards (ISO/IEC 14443-4)
• Interface: SPI
• Reading Distance: Up to 50 mm (depending on tag and environment)
• Material: PCB + Plastic
• Dimensions: 40mm x 60mm

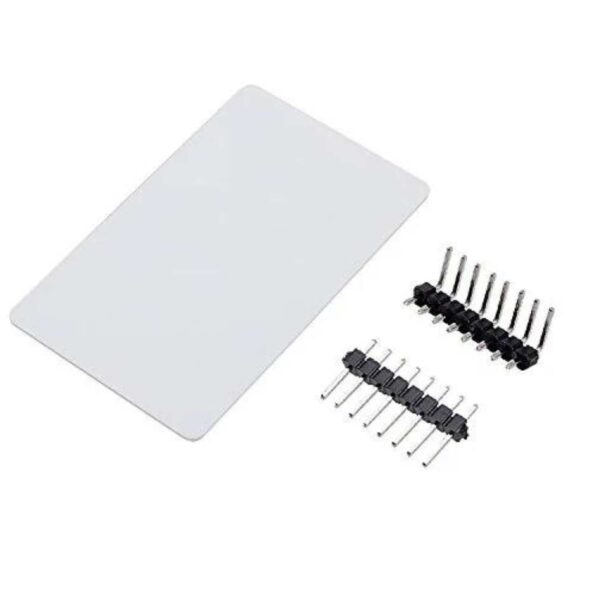

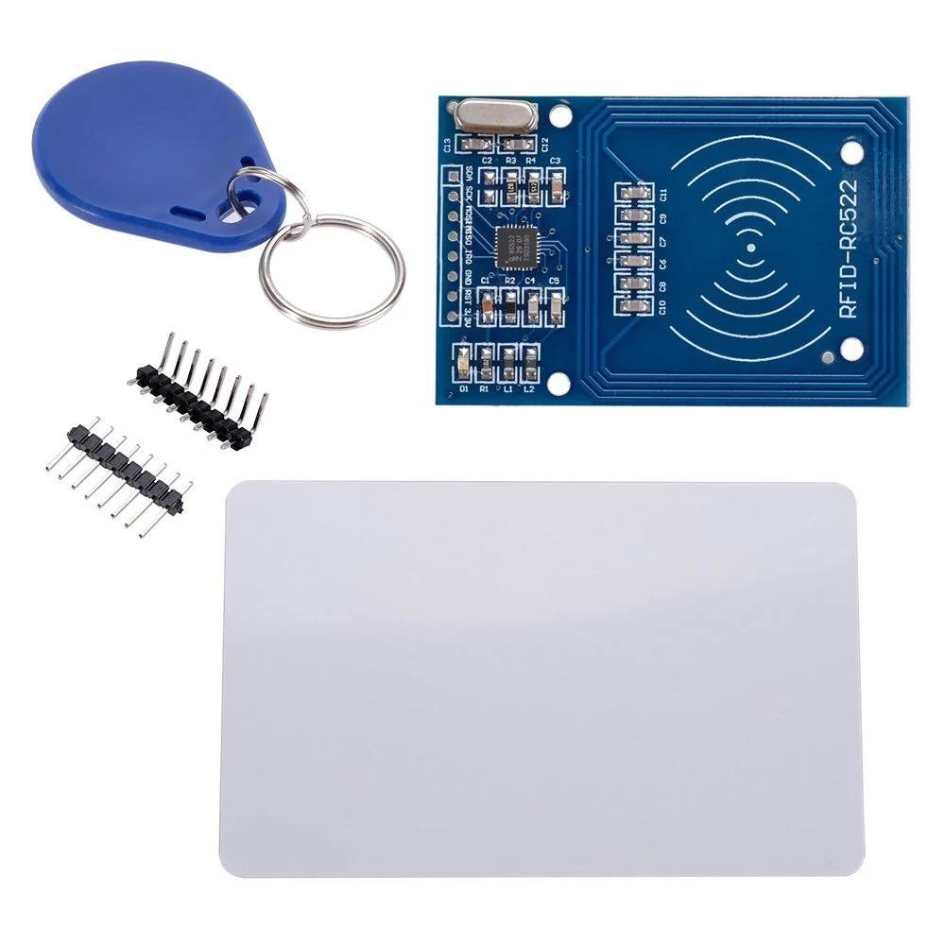

In the Box:

• 1 x RC522 RFID Reader/Writer
• 1 x RFID Card

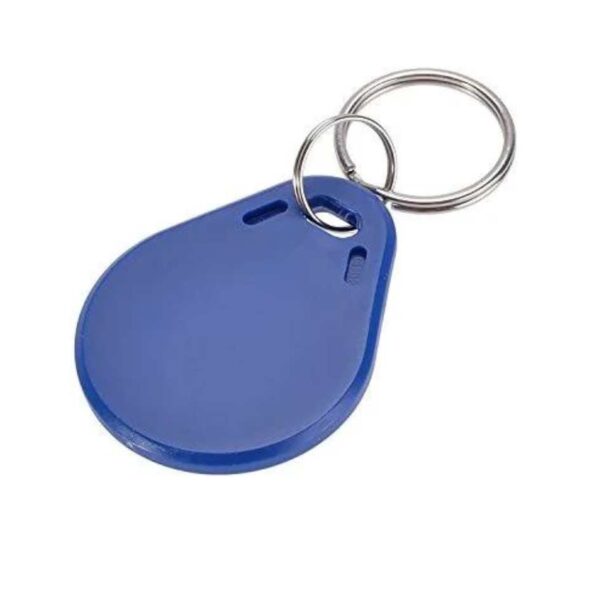

• 1 x RFID Tag

Perfect for DIY enthusiasts and system integrators alike, the RFID Reader/Writer RC522 SPI S50 is your gateway to developing sophisticated RFID systems. Whether you’re creating a security system, setting up a personal identification system, or adding user authentication to your devices, this kit provides all the necessary tools to get started with RFID technology.
