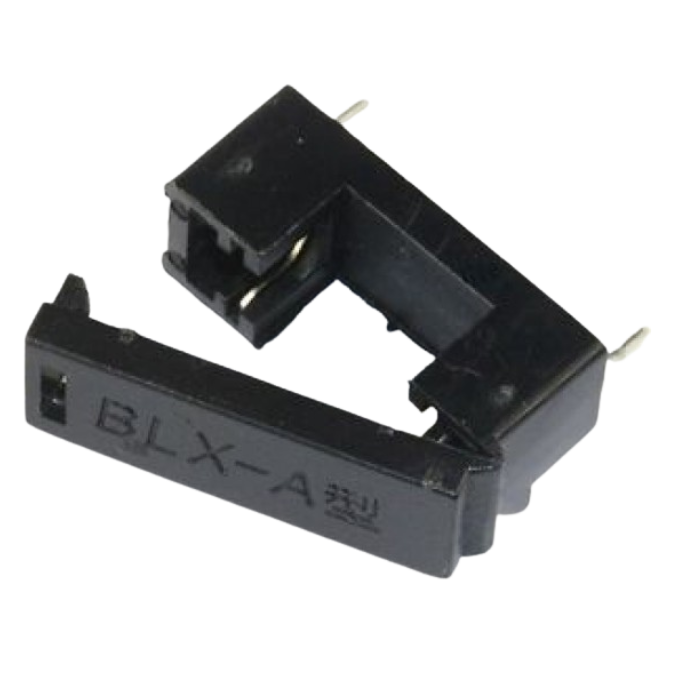

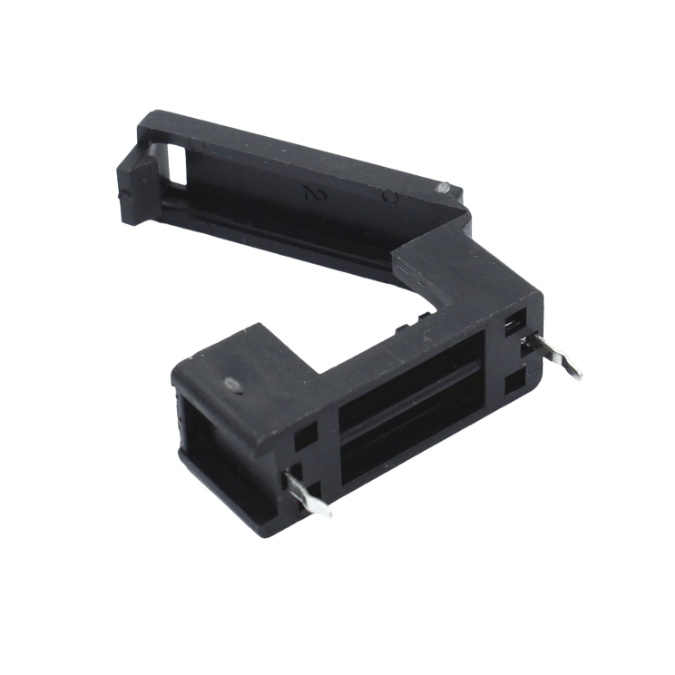

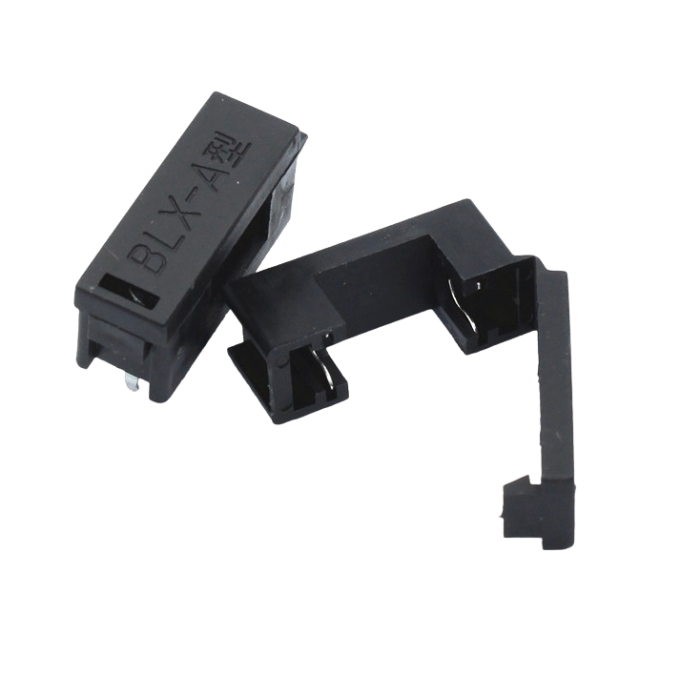

BLX-A Fuse Holder – 20mm – PCB Mount | Technolab Electronics

Ensure safety and reliability in your circuit protection designs with the BLX-A 5x20mm Fuse Holder, tailored for direct PCB mounting. This compact fuse holder is designed to house standard 5x20mm glass or ceramic fuses and provides robust mechanical support along with secure electrical contact. Whether for DIY electronics, embedded control systems, or professional industrial circuits, this fuse holder is a reliable and space-saving solution.

🔧 Features:

• Suitable for standard 5x20mm (Φ5.2x20mm) fuses
• Through-hole PCB mount for secure soldering
• High voltage and current rating – up to 6.3A @ 250V AC
• Durable nylon PA6 housing with high heat resistance
• Tin-plated brass terminals for corrosion resistance and excellent conductivity
• Easy and secure fuse insertion/removal
• Flame-retardant and compact construction
• Manufactured by XC Electronics (Shenzhen)

📐 Specifications:

• Model: BLX-A
• Supported Fuse Size: 5.2mm x 20mm
• Rated Current: 6.3A
• Rated Voltage: 250V AC
• Insulation Resistance: > 50 MΩ
• Dielectric Strength: AC 500V for 60 seconds (no breakdown)
• Housing Material: Nylon PA6 (Flame Retardant)
• Terminal Material: Tin-plated Brass
• Operating Temperature: < 125°C
• Mounting Type: PCB Through-Hole
• Color: Black

⚙️ Applications:

• Power supply circuits
• Consumer electronics
• Industrial control panels
• Embedded systems
• DIY and hobby electronics
• Overcurrent protection modules

📦 Package Content:

• 1 x BLX-A Fuse Holder – 20mm – PCB Mount
