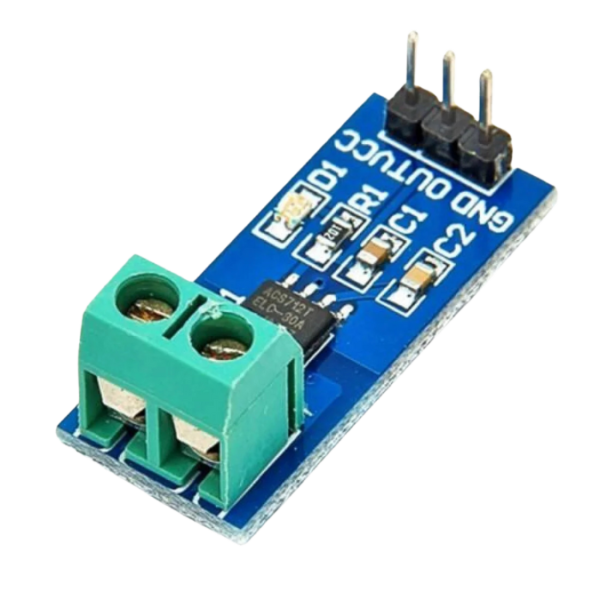

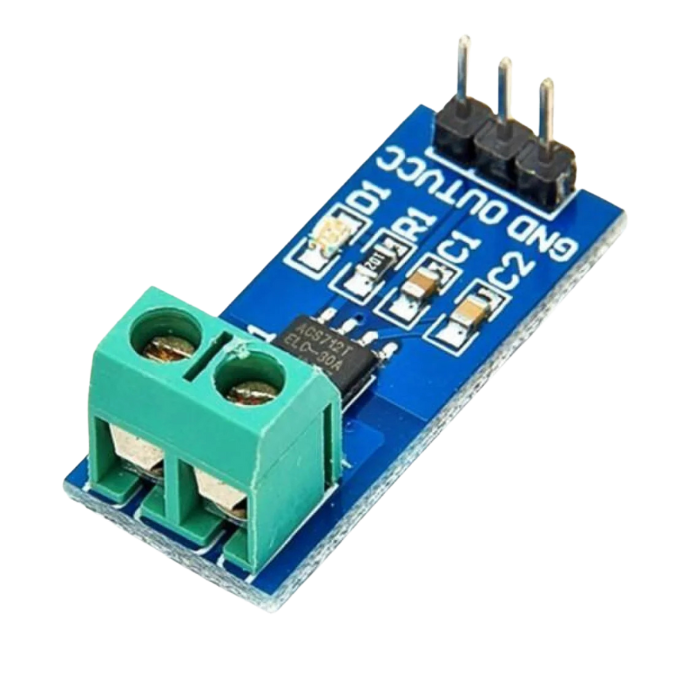

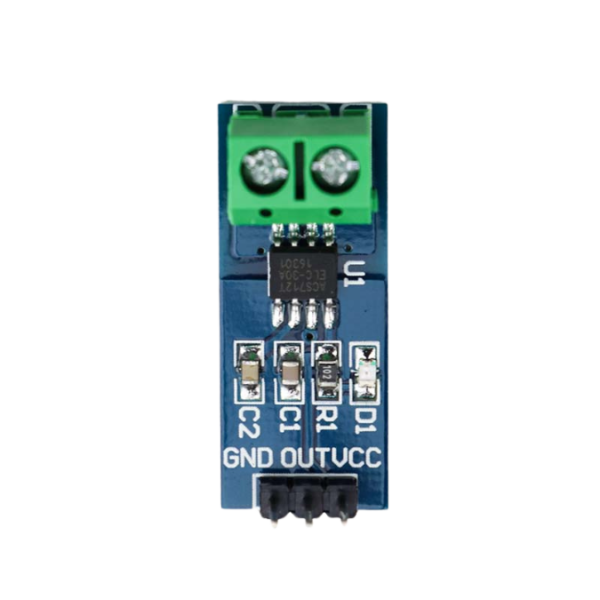

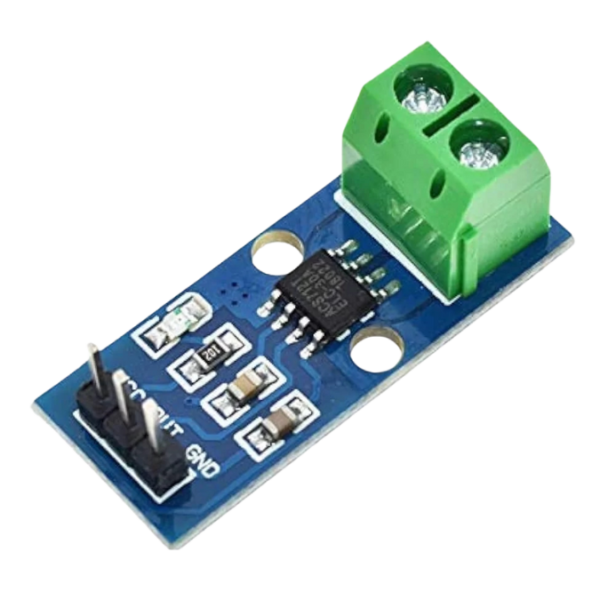

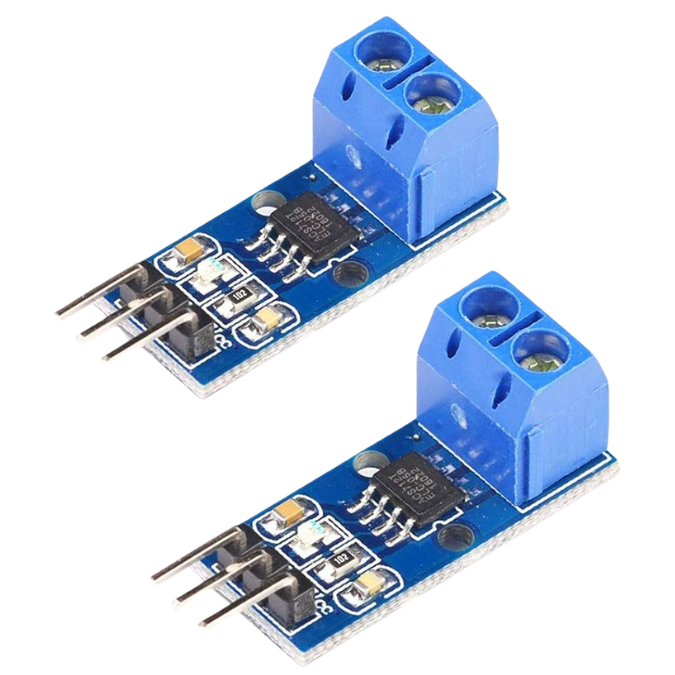

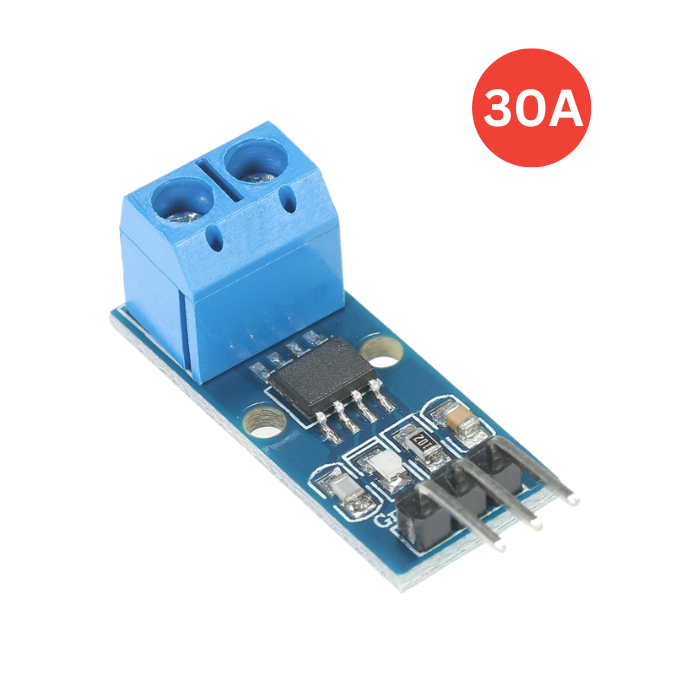

ACS712 30A Range Current Sensor Module

Overview:

Experience precise current measurement for your electronic projects with the ACS712 30A Range Current Sensor Module. Utilizing the advanced Hall effect principle, this module provides a seamless and accurate response to the changes in the magnetic field caused by current flowing through the conductor. Ideal for DIY enthusiasts and professionals alike, this module is perfect for integrating into your power monitoring systems and projects.

Features:

• High Accuracy: Measures current with a high degree of accuracy and very low noise.
• Wide Measurement Range: Suitable for measuring up to 30 Amps of AC or DC current.
• Easy to Interface: Analog output correlates with the current flowing through the terminals.
• Low Power Consumption: Optimized for battery-powered or energy-sensitive applications.
• Compact Design: Small footprint ideal for space-constrained applications.

Specifications:

• Supply Voltage: 4.5V to 5.5V DC
• Output Sensitivity: 66 mV/A
• Zero Current Output Voltage: Vcc x 0.5
• Operating Temperature: -40°C to +85°C
• Bandwidth: 80 kHz

Applications:

• Power Supply Monitoring
• Battery Chargers
• Over-Current Protection Circuits
• Automotive and Robotics
• Solar Power Management

Package Content:

– 1 x ACS712 30A Range Current Sensor Module

Enhance your project’s reliability and efficiency with this easy-to-use, highly adaptable current sensor module. Perfect for both prototyping and high-volume production, the ACS712 is your go-to sensor for current monitoring across a variety of applications.
