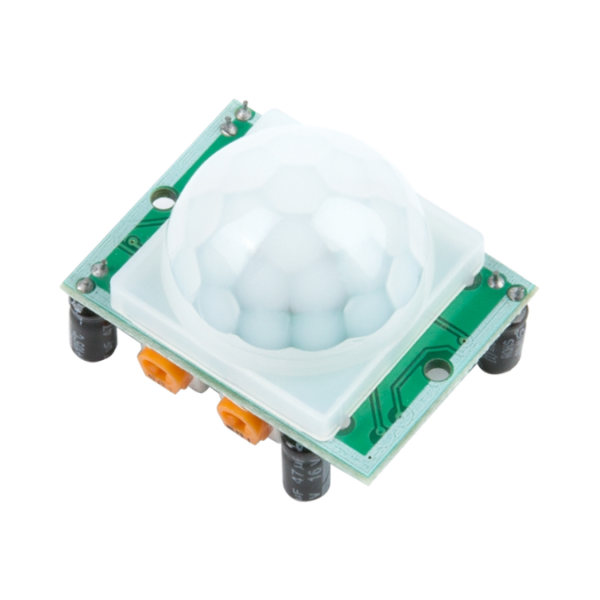

PIR Motion Detector Sensor Module HC-SR501

Discover enhanced motion detection for your next project with the HC-SR501 PIR Motion Detector Sensor Module. Designed for seamless integration into security systems, automation setups, and innovative applications, this module stands out with its reliability and ease of use. It’s perfect for developers and hobbyists seeking to incorporate motion-sensing capabilities without the complexity.

Features:

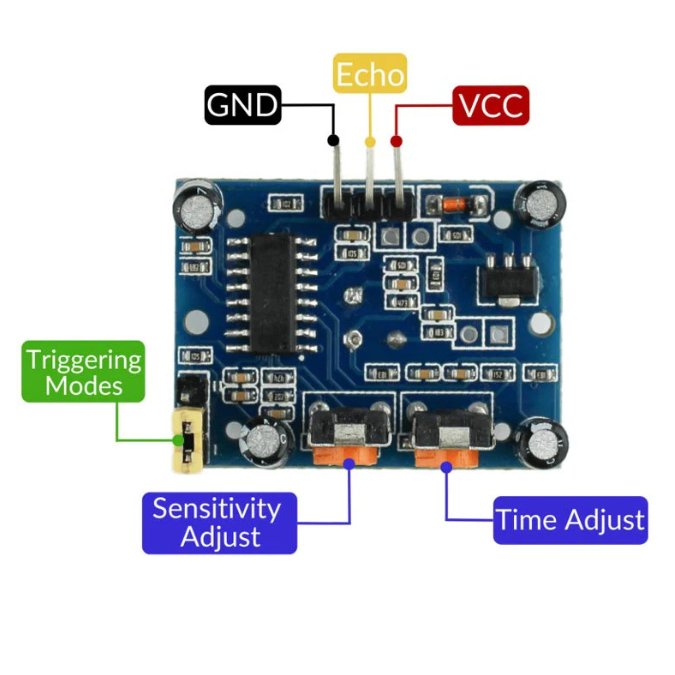

• Adjustable Sensitivity: Easily tweak the sensor’s range to fit your specific needs.
• Low Power Consumption: Optimized for battery-operated projects with a minimal power draw.
• Wide Detection Range: Effective over a wide angle of up to 120 degrees, providing extensive coverage.
• Delay Time Adjustment: Customize the delay time for triggered signals from 5 seconds to 200 seconds, allowing for versatile application scenarios.
• High-Level Output: 3.3V TTL logic output for direct interface with microcontrollers and other logic systems.

Specifications:

• Voltage Range: 4.5V to 20V
• Current Draw: 50μA (idle), 65mA (active)
• Detection Distance: Up to 7 meters
• Trigger Configuration: Repeatable/H-non-repeatable
• Operating Temperature: -20°C to +80°C
• Dimensions: 32mm x 24mm

Applications:

• Home and Office Security Systems: Activate alarms or lights upon detecting movement.
• Energy Management: Automate lighting, reducing power consumption by turning off lights in unoccupied spaces.
• Automated Doors: Open and close entries based on human presence.
• Occupancy Sensing: Monitor areas for presence or absence of people, useful in smart building setups.

Package Content:

• 1 x HC-SR501 PIR Motion Detector Sensor Module
• 1 x Instruction Manual

Crafted with precision and functionality in mind, the HC-SR501 module provides a reliable solution for all your motion detection needs, enhancing the intelligence of your projects effortlessly. Whether you are building a sophisticated security system or a simple automatic lighting controller, this sensor ensures performance and reliability.
