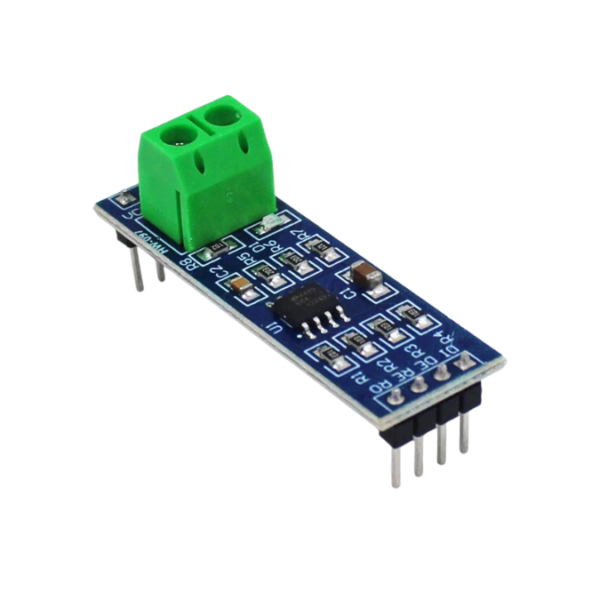

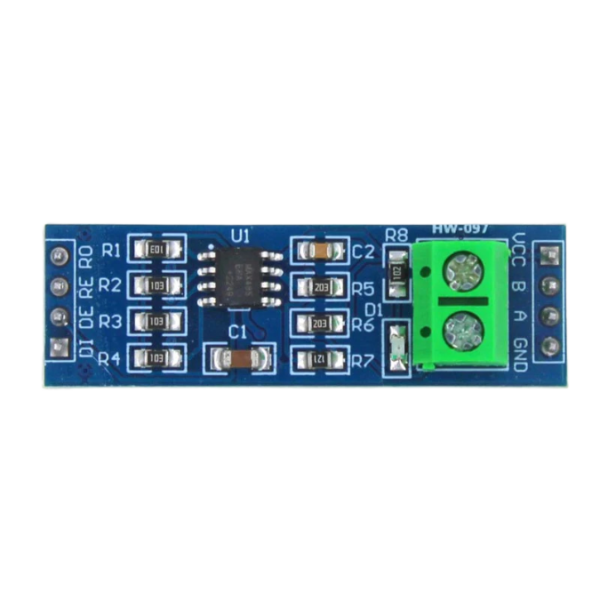

RS485 to TTL Converter Module

Unlock seamless communication between TTL-based and RS485-based systems with our robust RS485 to TTL Converter Module. Designed for precision and reliability, this converter is an essential tool for developers and engineers who need to bridge different communication protocols. Whether you’re handling industrial automation, network communication, or data-heavy applications, this module ensures efficient data transfer with minimal signal degradation.

Features

• Bidirectional Communication: Allows for reliable two-way data exchange between TTL and RS485 interfaces.
• High Baud Rate: Supports baud rates from 300 to 115200 bps, ensuring compatibility with a wide range of devices and systems.
• Built-in Protection: Equipped with surge protection, static electricity protection, and power isolation, this module safeguards against common electrical threats.
• Compact Design: The small footprint makes it easy to integrate into existing systems without requiring significant space.
• Plug and Play: Easy to install with minimal configuration, getting your systems connected quickly and efficiently.

Specifications

• Input Voltage: 3.3V to 5V
• Operating Temperature: -40°C to +85°C
• Dimensions: 44mm x 14mm
• Connectivity: Terminal blocks for RS485 output, pin headers for TTL input/output
• Compatibility: Suitable for use with all standard RS485 and TTL devices
• Signal Indicators: LED indicators for power, data transmission, and error detection

Applications

• Industrial Automation
• Building Automation
• Networked Communication for Access Control Systems
• Serial Data Integration and Logging

Enhance your system’s capabilities with our RS485 to TTL Converter Module, designed for reliable performance and compatibility. Ideal for a variety of applications, this module provides a critical solution for integrating diverse communication technologies. Purchase today and experience seamless integration and enhanced data transmission efficiency.
