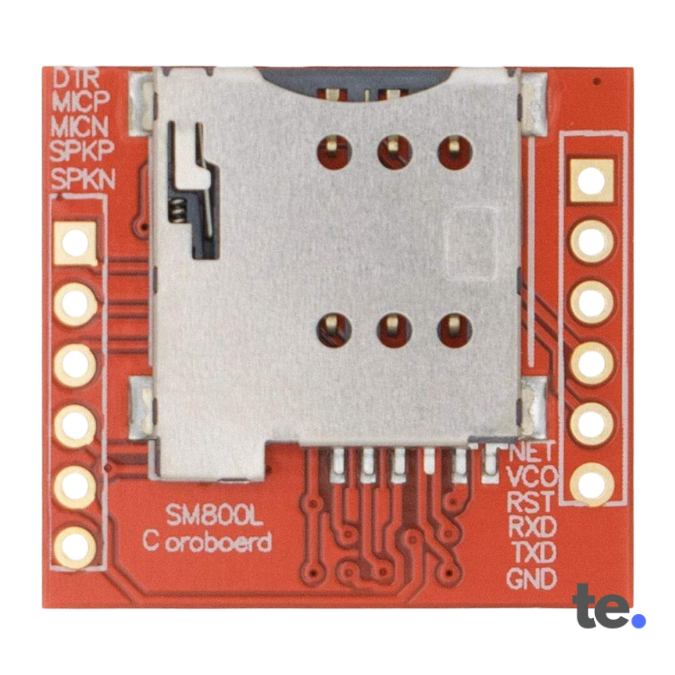

SIM800L GPRS GSM Module Core Board Quad-band TTL Serial Port

Unlock the power of wireless connectivity with our SIM800L GPRS GSM Module! Designed for versatility and performance, this compact module offers reliable GSM/GPRS capabilities on a global scale. Equipped with a quad-band frequency support, it ensures seamless functionality in most geographical regions. Perfect for IoT applications, remote data monitoring, and mobile communications, the SIM800L integrates effortlessly into your projects, offering a robust link to the cellular network.

Key Features:

• Quad-Band 850/900/1800/1900MHz: Operates universally in most GSM networks.
• TTL Serial Interface: Easy integration with microcontrollers and Arduino boards.
• Low Power Consumption: Ideal for battery-driven and portable applications.
• Compact Design: Small form factor for easy embedding in size-constrained applications.
• Control via AT Commands: Provides flexibility and control over GSM functions.

Specifications:

• Voltage Range: 3.4V to 4.4V
• Current Consumption: 1A during transmission, minimal in idle mode
• Communication Interfaces: TTL serial port
• SIM Card Compatibility: Supports 1.8V/3V SIM cards
• Antenna Interface: Onboard IPX connector, also supports external antenna

Applications:

• IoT Devices: Enable your IoT devices to communicate and transmit data over cellular networks.
• Remote Monitoring Systems: Ideal for monitoring systems in remote or inaccessible locations.
• Mobile Communication: Embed in mobile devices for messaging, calls, and internet access.
• Security Systems: Enhance security systems with GSM-based alerting and monitoring.

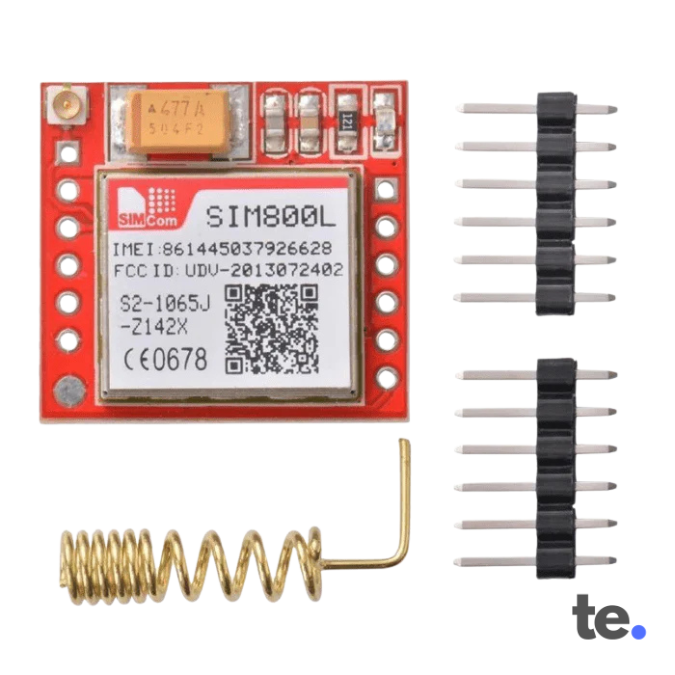

Package Contents:

• 1x SIM800L GPRS GSM Module
• 1x IPX Antenna

Ensure seamless and stable connections for your projects with the SIM800L GPRS GSM Module. Whether for professional or hobbyist applications, this module provides the reliability and performance you need to stay connected.
