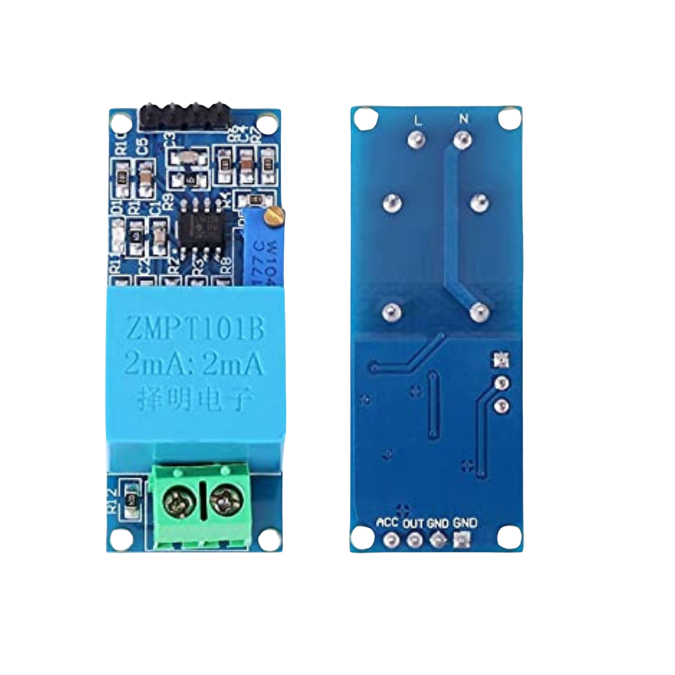

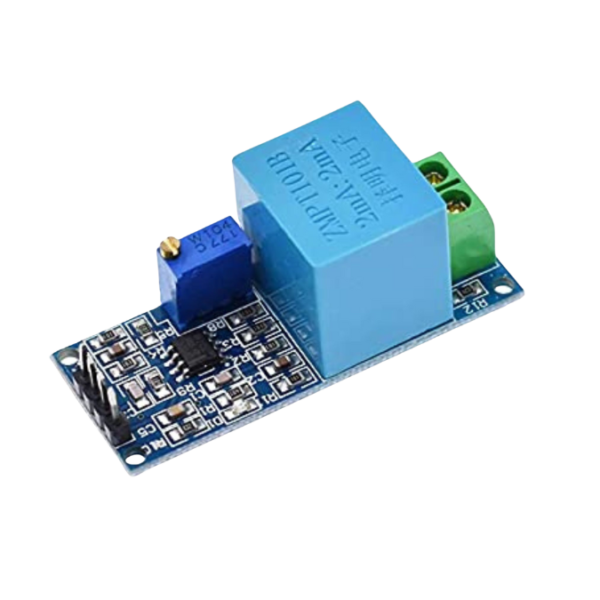

AC Voltage Sensor Module ZMPT101B (Single Phase)

Unlock the potential of your projects with the ZMPT101B AC Voltage Sensor Module, a highly reliable and precise tool designed for single-phase voltage measurement. This compact module is perfect for developers and engineers who need accurate monitoring and data analysis in real-time.

Features:

• High Precision: Utilizes the ZMPT101B micro-transformer for accurate voltage sensing.
• Wide Voltage Range: Capable of measuring AC voltage within a range of 80V to 250V.
• Linear Output: Offers a linear voltage output that correlates directly with the AC voltage applied, making data interpretation straightforward.

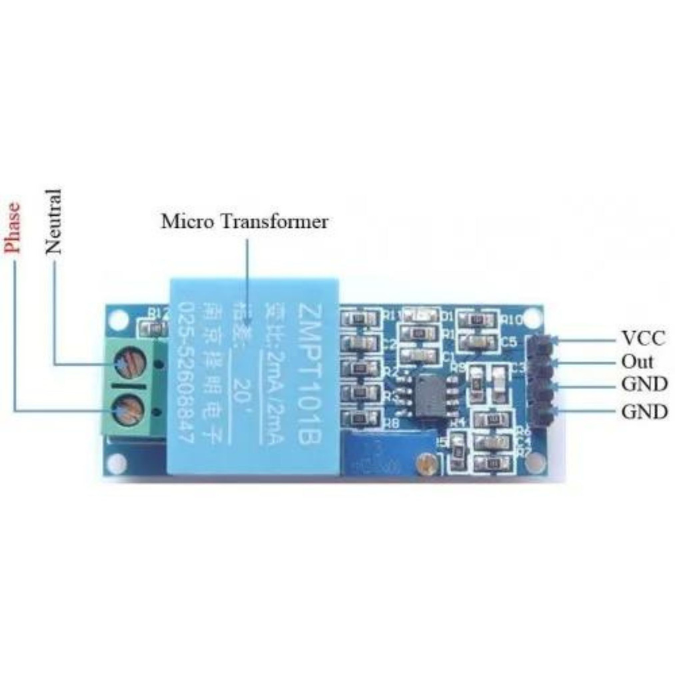

• Easy Integration: Small form factor with standard pin interfaces for hassle-free integration into existing systems.
• Robust Design: Engineered with durability in mind, ensuring stability and reliability even in demanding applications.

Specifications:

• Input Voltage (Vrms): 80V-250V
• Measurement Accuracy: ±1%
• Frequency Range: 45Hz to 65Hz
• Output Signal: Analog (0-5V)
• Board Dimensions: 25mm x 20mm
• Operating Temperature: -40°C to +85°C

Applications:

• Energy Management: Ideal for building and home energy management systems.
• Overload Protection: Use in circuits to monitor and react to voltage spikes and surges.
• Commercial and Residential Monitoring: Track and analyze the voltage in various appliances and systems.
• Educational Purposes: Excellent for academic projects related to electrical engineering.

Package Contents:

•  AC Voltage Sensor Module ZMPT101B

Elevate your project’s capabilities with the ZMPT101B AC Voltage Sensor Module, offering uncompromised accuracy and ease of use. Whether for professional or educational purposes, this module is your go-to solution for reliable voltage measurements.
