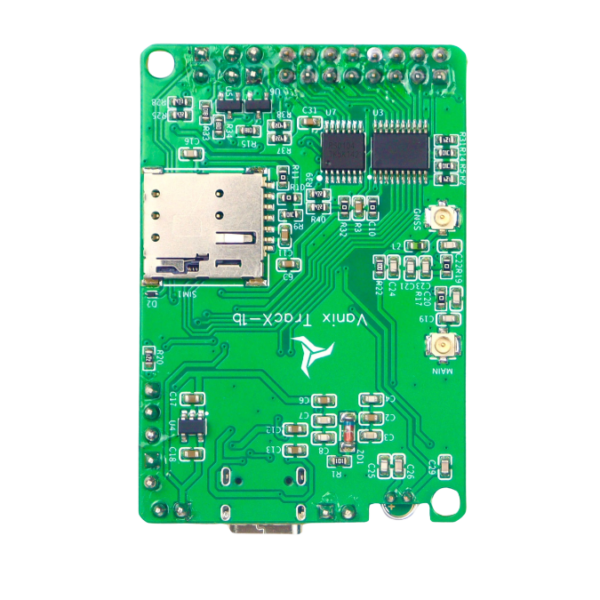

TracX-1b 4G/GNSS QuecOpen Modem

Product Name: TracX-1b 4G/GNSS QuecOpen Modem

SKU: MOD-TRACX1B

Product Overview:

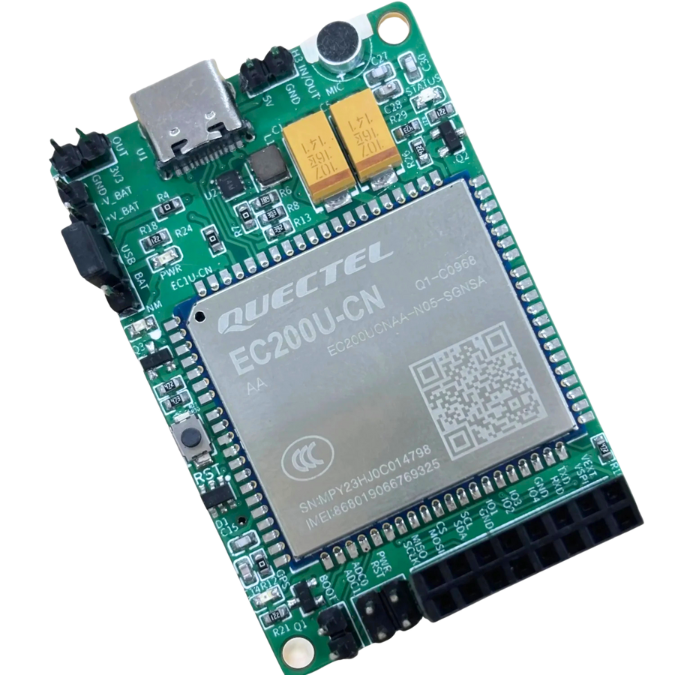

The TracX-1b is a high-performance 4G LTE and GNSS modem engineered for advanced Machine-to-Machine (M2M) and Internet of Things (IoT) applications. This compact, versatile device integrates the power of the EC200U-CN series module, offering reliable data transfer, efficient power usage, and enhanced GPS capabilities suitable for a wide range of applications. Its robust design and multiple interface support make it ideal for deployment in various environments including automotive systems, industrial applications, and portable devices.

Key Features:

• High-Speed 4G LTE Connectivity: Utilizes LTE-FDD and LTE-TDD for fast data transfer speeds, ensuring efficient real-time communication.
• Global Navigation Satellite System (GNSS) Support: Includes GPS, GLONASS, BeiDou, and Galileo for precise location tracking.
• Versatile QuecOpen Environment: Integrates a powerful microcontroller for running complex applications directly on the modem.
• Compact Design: Ideal for integration into small and portable devices due to its minimal space requirements.
  Diverse Interface Compatibility: Supports UART, USB-C, and antenna interfaces, providing flexible connection options.

Specifications:

• Supply Voltage (Vbat): 3.7V – 4V
• USB-C Voltage: 3.7V – 5V
• Typical Supply Voltage: 3.8V
• Network Support: LTE-FDD, LTE-TDD, and GSM/GPRS
• Data Rate: Max 10 Mbps (Download), Max 5 Mbps (Upload)
• Interfaces: UART, USB-C, Nano SIM, Main antenna, GNSS antenna
• Physical Dimensions: 37.97mm x 55.7mm x 4mm
• Operating Temperature: -35 °C to +75 °C

Applications:

• IoT Devices: Ideal for smart meters, asset tracking, and remote sensors.
• Wireless Routers: Can be integrated into portable routers and mobile hotspots.
• Automotive Telematics: Suitable for GPS navigation, vehicle diagnostics, and entertainment systems.
• Point-of-Sale Systems: Enables wireless payment processing and data communication in mobile POS setups.
• Remote Monitoring and Control: Perfect for transmitting data over long distances in industrial and infrastructure monitoring.

Ideal for:

Developers and companies looking for a reliable and robust modem for integrating into IoT solutions, telematics, or any application requiring stable long-range data communication and precise location services.

Enhance your product lineup with the TracX-1b 4G/GNSS QuecOpen Modem, a top-tier choice for those needing a versatile, high-performance connectivity solution.
