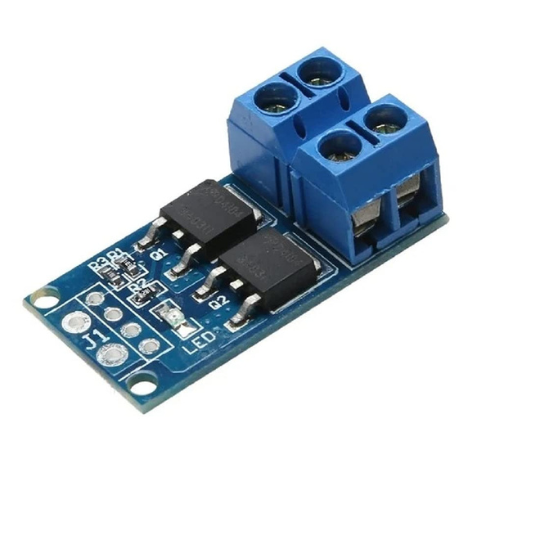

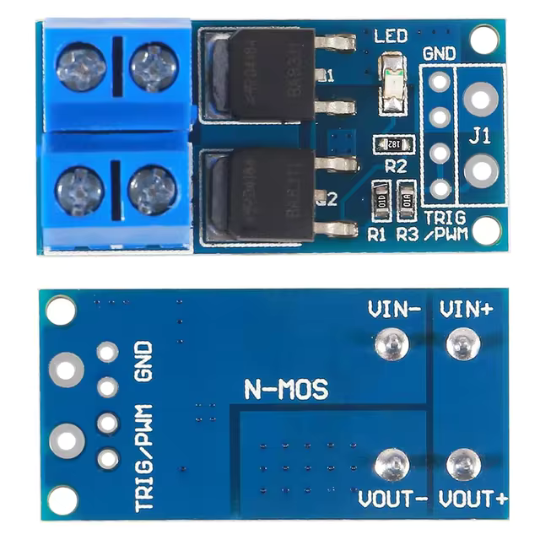

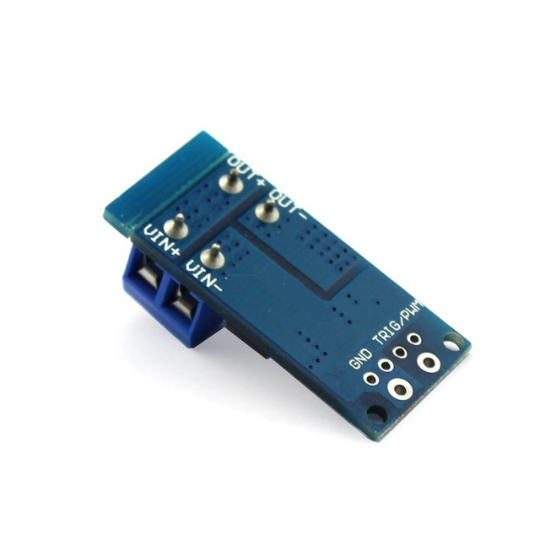

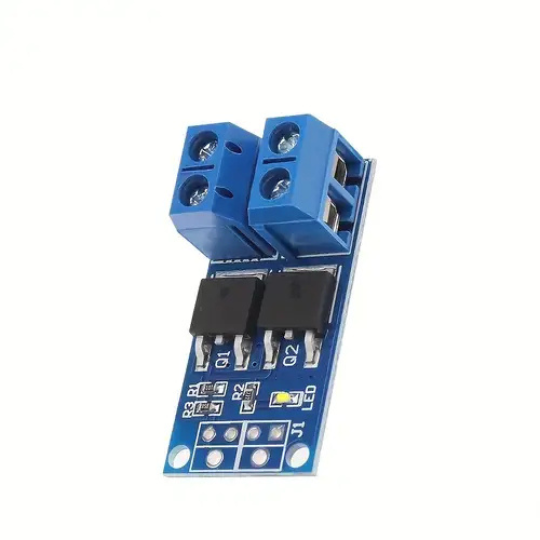

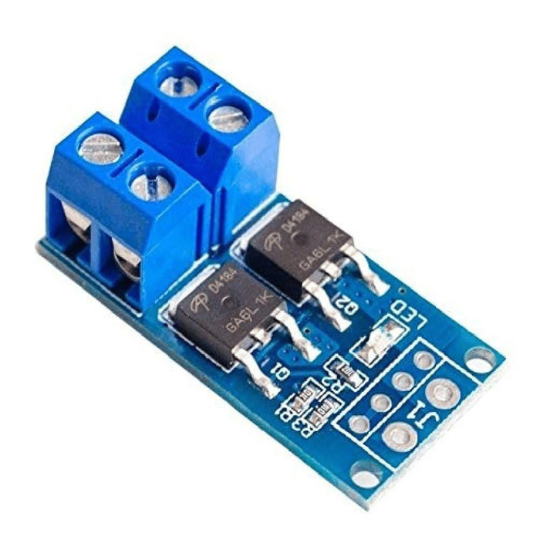

5-36V Switch Drive High-Power MOSFET Trigger Module for Advanced Power Control

Product Overview:

The 5-36V Switch Drive High-Power MOSFET Trigger Module is a robust, high-performance solution designed for advanced power control applications. Featuring a field-effect transistor (FET) to manage electronic switches, this module integrates imported dual-MOS parallel active outputs to ensure lower internal resistance, higher current, and stronger power capabilities. Ideal for hobbyists and professionals alike, it supports up to 15A and 400W under standard conditions, making it perfect for managing a wide range of high-power devices.

Key Features:

• High-Efficiency Dual-MOS Output: Utilizes imported dual-MOS parallel configuration for lower resistance and higher power efficiency.
• Versatile Trigger Options: Supports digital high-low triggers from DC 3.3V to 20V, compatible with microcontrollers, PLC interfaces, and PWM signals.
• Extended PWM Frequency Range: Accepts PWM input signals at frequencies from 0 to 20KHz, providing versatile control over motor speed and light intensity.
• Robust Output Capacity: Operates at DC 5V – 36V with a continuous current of 15A and power output of 400W at room temperature. With additional cooling, it can handle a maximum current of 30A.

Specifications:

• Input Voltage: 5V to 36V DC
• Output Current: 15A continuous, up to 30A with auxiliary cooling
• Trigger Voltage: 3.3V to 20V DC
• Power Output: Up to 400W
• Signal Frequency: 0–20KHz
• Dimensions: 34mm x 25mm x 17mm
• Weight: 15g

Applications:

• Power Equipment Control: Ideal for controlling devices like electric motors, light bulbs, LED lights, and solenoid valves.
• Speed and Brightness Adjustment: Use PWM input to control motor speed and adjust the brightness of lamps.
• Automation Systems: Perfect for integration into industrial automation setups to manage power distribution efficiently.

Package Contents:

• 1 x 5-36V Switch Drive High-Power MOSFET Trigger Module

Enhance your projects with the 5-36V Switch Drive High-Power MOSFET Trigger Module, designed for powerful, efficient, and versatile power management.
